产品名称(Product name)：数控六轴四工位清光机  CNC Six-spindle four-station polishing machine

产品类别(Product Category)：表面处理  Surface treatment

应用方向(Application)：广泛应用于卫浴、五金、汽配等领域  It is widely used in sanitary ware, hardware, auto parts and other fields.

产出品分析(Output product analysis)：

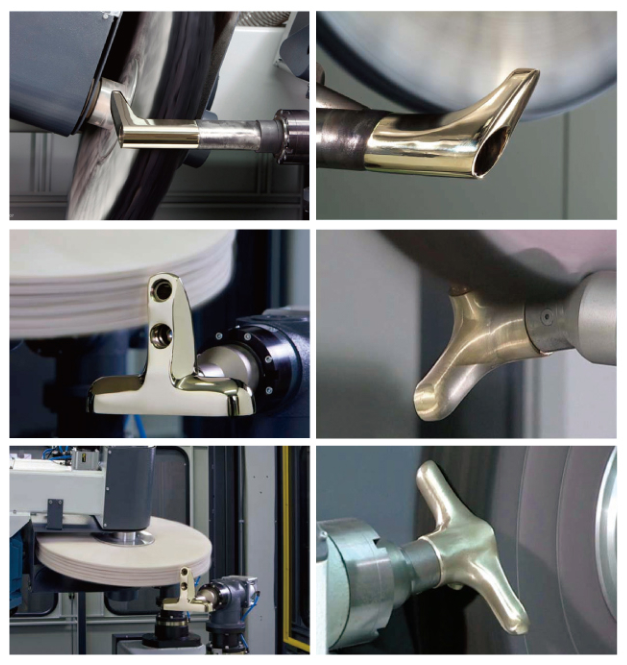

1.水龙头本体、配件产品清光

1.The faucet body and accessories are polishing.

2.锁具、门把手清光

2.Locks and door handles polishing.

3.各类五金、饰品清光

3.All kinds of hardware and jewelry are polishing.

工序组成(Process composition)：

1、更换夹具和夹具对应的工件，选择工件对应的程序

1.Replace the fixture and the workpiece corresponding to the fixture, and select the program corresponding to the workpiece;

2、按下启动按钮

2.Press the start button;

3、工作台进入，玻璃门关闭，开始清光工序

3.The workbench enters, the glass door is closed, and the polishing process begins;

4、清光完成后工作台退出，玻璃门打开

4.After the polishing is completed, the workbench exits and the glass door opens.

选材用料(Material selection)：

1.抛光动力电机采用伺服电机，能耗低，使用寿命长

1.The polishing power motor adopts a servo motor, which has low energy consumption and long service life;

2、使用夹胶玻璃，双层玻璃保护，安全系数高

2.Use laminated glass, double-layer glass protection, high safety factor;

3、机座、立柱、鞍座均采用HT250铸件结构，整体铸造出来后，堆放在露天经过自然时效，材质稳定，变形量小，提高了整机的稳定性

3.The machine base, column and saddle are all made of HT250 casting structure. After being cast as a whole, they are stacked in the open air for natural aging. The material is stable and the amount of deformation is small, which improves the stability of the whole machine;

4、采用进口减速机，精度高、稳定可靠性好、噪音低、工作寿命长

4.Imported reducer, high precision, good stability and reliability, low noise and long working life;

5、采用台湾上银滚珠丝杆、直线导轨传动，效率高，寿命高，精度高

5.It adopts Taiwan silver ball screw and linear guide rail drive, which has high efficiency, long life and high precision;

机能价值(Functional value):

1、示校篇程，采用手动模式模拟人工抛光并记录轨迹，即可按此路径自动运行，精度高，自动化程度高

1.Show the course of the calibration, use manual mode to simulate manual polishing and record the track, then it can run automatically according to this path, with high precision and high degree of automation;

2、通过系统底座实现设备整体打包、运输，减少设备于客户现场的安装定位时间，提高设备整体安装定位精度

2.Realize the overall packaging and transportation of the equipment through the system base, reduce the installation and positioning time of the equipment on the customer site, and improve the overall installation and positioning accuracy of the equipment;

3、采用蜗轮蜗杆减速机联动机构，使四个抛光动力头同步旋转

3.The worm gear reducer linkage mechanism is adopted to make the four polishing power heads rotate synchronously.

4、工件采用气缸夹紧方式，可速换工装

4.The workpiece adopts the cylinder clamping method, and the tooling can be changed quickly.

5、零件打磨精密无死角

5.Parts are precisely polished and have no dead corners.

6、气压平衡系统平衡配重，减少机身重量，便于运输，提升效率

6.The air pressure balance system balances the weight, reduces the weight of the fuselage, facilitates transportation, and improves efficiency;

7、可根据产品的特点自由设定喷蜡时间、频率，可选配固体蜡或液体蜡形式

7.The wax spraying time and frequency can be set freely according to the characteristics of the product, and the solid wax or liquid wax form can be selected;

8、全数字控制，程序可保存并随时调用，显示触控面板设定各项功能及参数，操作容易并具有故障码显示功能便于检修

8.Fully digital control, the program can be saved and recalled at any time, display the touch panel to set various functions and parameters, easy to operate and have a fault code display function for easy maintenance;

创意设计(Creative design)：

1、外观整体采用灰色和明黄色，黄色为沉稳的暗调空间带来活力，更具时尚感与活泼感

1.The overall appearance is gray and bright yellow. Yellow brings vitality to the calm and dark space, making it more fashionable and lively;

2、流线型机身设计，在不增加占地面积的同时提升整体外观美观性

2.The streamlined body design improves the overall appearance and aesthetics without increasing the floor area;

3、机身前、左、右三面配备透明玻璃，可多角度观测工件清光情况

3.The front, left and right sides of the fuselage are equipped with transparent glass, which can observe the clear condition of the workpiece from multiple angles;

4、机身前侧大开门设计，便于工件的更换，符合人机工学的设计

4.The large-open door design on the front side of the fuselage facilitates the replacement of workpieces and conforms to the ergonomic design;

信誉价值(Reputation value)：

1、国内自主技术产权，产品使用稳定有保障

1.With independent domestic technological property rights, the product use is stable and guaranteed.

2、全球服务网络，客户服务快捷便利

2.Global service network, fast and convenient customer service.

3、支持个性化定制，提升客户体验感

3.Support personalized customization to enhance customer experience.

4、研发和制造应用领域机器人、数控智能自动化设备等高端技术装备,牵头承接国家863计划，技术实力雄厚

4.R&D and manufacturing of high-end technical equipment such as robots and numerical control intelligent automation equipment in the application field, taking the lead in undertaking the national 863 plan, with strong technical strength;

5、专家型技术人员全程服务，产品设计合理有效

5.Expert technicians provide full service, and the product design is reasonable and effective.
